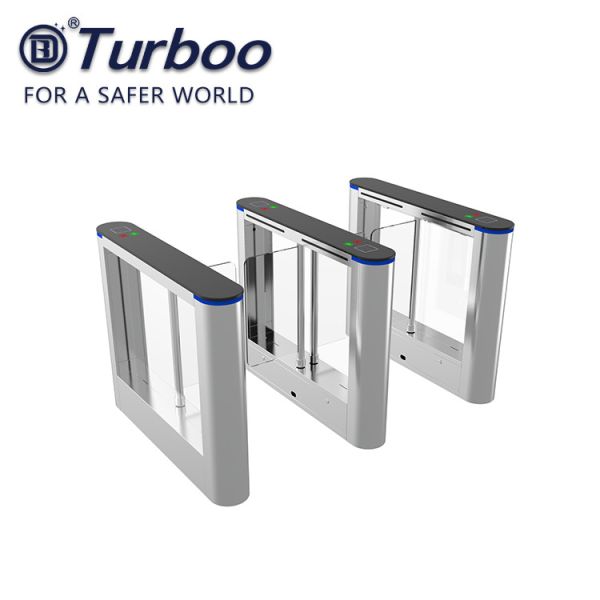

Selling well RFID card reader security turnstile with stable office access
1. Faster pass speed and better performance for anti-trailing.
2. The design of connecting rod - run smoothly without noise.
3. Anti-climb, Anti-creeper,Strict management and higher grade appearance which offering graceful passage.
4. Infrared anti pinch design and Dormancy function when barrier is blocked to achieve a more safe passage.
5. Sound and light alarm, including illegal intrusion,enter from wrong direction,trailing and overdue passing etc.
6. Gate auto open when power is off to meet the fire protection requirements.
Materials
• Housing:Made in stainless steel AISI 304 o AISI316.
• Barrier swings-Acrylic, PC, stainless steel frame.
Features and Benefits
1. Smartcard reader compatible with a variety of RF cards, such as Mifare-1, EM.
2. Can be expanded to automatic identification system, realizing function of access control, pedestrian flow control,attendance check or fare collection.
3. Equipped with international standard electrical interface, can be easily integrated with other R/W device, also can be controlled and management through remote supervision computer
4. Equipped with a couple of infrared photocells, alarm at unauthorized entry or tailgating attempts, together with anti-strike function to protect pedestrian
5. LED gate direction indicator that displays the current operational state to pedestrian. Green arrow for entry free, Red cross for passage locked.
6. Can open the turnstile by two input signals (signals can be input by access controller, button or other equipments)
7. Provide audible sound prompt and information display function.
8. The flaps will open automatically during power interruption, and recover N/C mode after power on(optional)
9. Counting function. Flap closes after passing N pedestrians continuously by reading cards N times correspondingly (N<=16)
10. Reversed passing alarm function, barrier will alarm if pedestrian pass from opposite direction after reading the card.
Our advantage
-
90%of production processes are developed by ourselves so we can control the costs and provide the competitive price correspondingly
-
We use Baoxin Stainless steel, the best brand in China
-
Our power supply is the best brand from Taiwan “Mingwei” or “Fujia”
-
| Technology Parameters |
| Size | 1200×190×980mm |
| Unlock time | 0.2s |
| Pass rate | 35p/m |
| Pass width | ≤600mm |
| Input | 100V~240V |
| Driving voltage | 24V |
| Environment | -25~+70℃ |
| Power consumption | 35W |
| Input | Dry contact |
